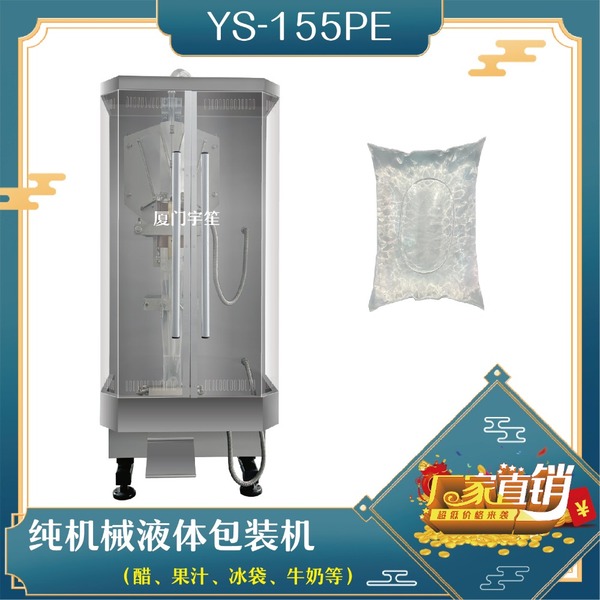

YS-155PE 纯机械液体包装机

１、适用于食品、医药、化工、化妆品行业中液体物品的计量包装。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of liquids measurement packing.

２、一键启动，可自动完成制袋、计量、下料、封合、分切等功能。

One click start can automatically complete functions such as bag making, measuring, cutting, sealing, and slitting.

３、通过螺杆控制袋长，性能稳定、调整方便。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。

By controlling the bag length through screws, the performance is stable and easy to adjust. Intelligent temperature controller with PID adjustment ensures that the temperature error range is controlled within 1 ℃.

4、包装材料：PE膜

Packing material: PE film.

封口方式 Sealing Type

三边封口 / 背封封口

Three sides Sealing / Back sealing

技术参数

Technical Parameters

计量范围：100 - 500 ml（无极可调）（具体根据袋子大小测量）

Measuring Scope

制袋尺寸：长( L )  :  15-155 mm

Bag Size 宽( W )  :  85-150 mm

包装速度：25 - 32 bags/min

Packing Speed

外型尺寸：1000 * 860 * 1810mm

Dimension ( L * W * H )

整机重量：300 kg（具体以实物为准）

Weight

总 功 率：220V / 50Hz / 1.6kw

Total Power
