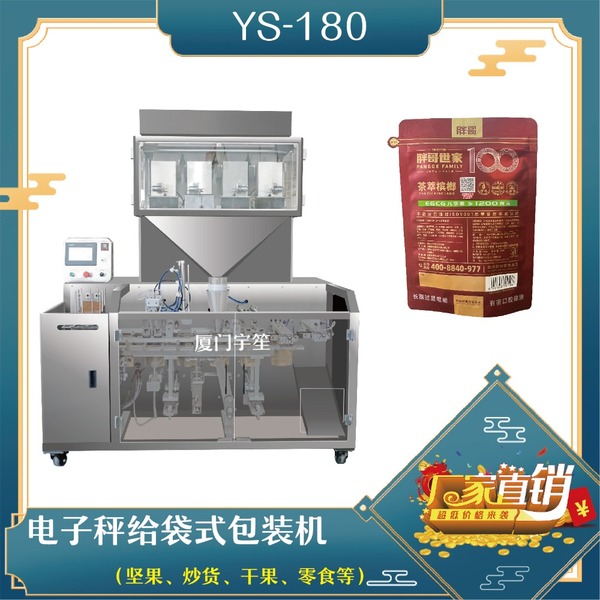

YS-SP180水平给袋式包装机

特点：

1、适用于食品、医药、化工、化妆品行业中颗粒、固体、膨化等物品的计量包装。

Suitable for measuring packaging of particles, solids, puffs, and other items in the food, pharmaceutical, chemical,and cosmetics industries.

2、用于自封袋、站立袋、拉链袋。包装流程全自动，无需人工操作。可根据充填物料的性质选配不同的下料结构，且可根据客户要求配置打印批号等功能。

Used for ziplock bags, standing bags, zipper bags. The packaging process is fully automatic without manual operation. Different feeding structures can be selected according to the nature of filling materials, and can be configured to print batch numbers and other functions according to customer requirements.

3、采用触摸屏操作，PLC控制，封口温度自动补偿，控温精准，封口美观大方。（可做M袋、站立袋、自封袋）

It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.

4、包装材料：PE复合膜，如：纯铝，镀铝等预制袋。

Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

技术参数：

计量范围：20-500g

Measuring Scope

预制袋：长 ( L ) ：100 - 260mm

Prefab bag   宽 ( W ) ：100 - 180mm

包装速度：20 - 40bags / min

Packing Speed

外型尺寸：1618 * 1056 * 1334 mm（规格可定制）

Dimension  ( L * W * H )

整机重量：450 kg

Weight

总 功 率：AC220V / 50 - 60Hz / 3.3kw

Total Power

气       源：≥0.6Mpa

Gas source
