袋泡茶内外袋包装机，茶叶包装机 大麦茶袋中袋茶叶自动包装机

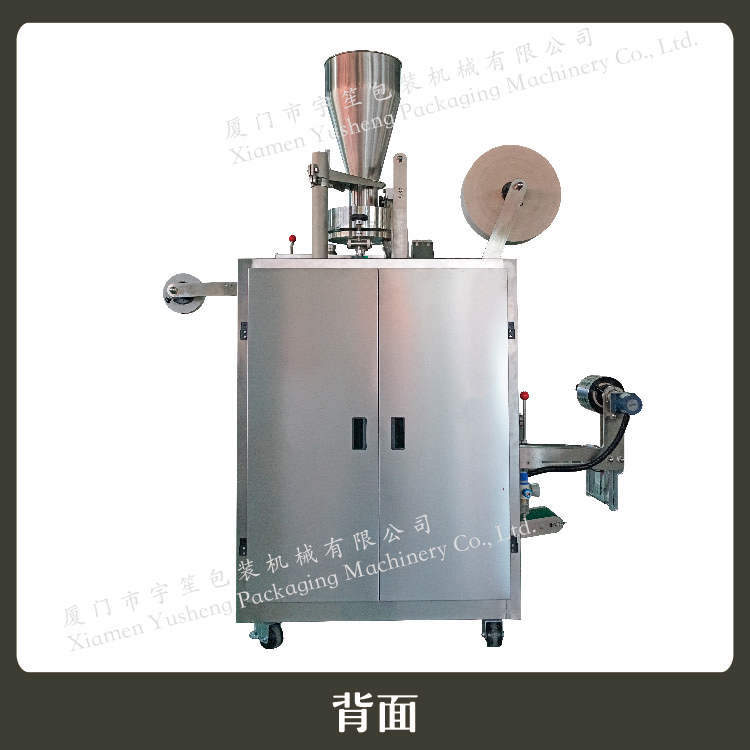

YS-169 新一代 袋泡茶内外袋包装机

特  点 Characteristic

1、适用于茶叶、药茶、保健茶草根类等小颗粒物的内外袋一次性包装。

The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.

2、内、外袋拉膜由步进电机控制，袋长稳定、定位准确。

Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.

3、采用PID调节温度控制器，温度控制得更准确。

The temperature controller is adjusted by PID to make the temperature control more accurate.

4、采用PLC控制整机的动作，人机界面显示，保证产品的卫生可靠。

Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products

5、包装材料：茶叶滤纸、棉线、复合膜及标签。

Packing material：filter paper, thread, composite membrane and labels.

封口方式 Sealing Type

三边封口Three sides sealing

技术参数

Technical Parameters

计量范围：3 - 10 g（ 1.6 ~ 26 ml ）

Measuring Scope

内袋尺寸：长 ( L ) ：50 - 70 mm  宽 ( W ) ：45 - 80 mm

Inner bag size

外袋尺寸：长  ( L ) ：80 - 120mm   宽 ( W ) ：75 - 95 mm

Outer bag size

包装速度：30-40 bags / min

Packing Speed

外型尺寸：1750*740*1950mm

Dimension ( L*W*H )

整机重量：550 kg

Weight

总 功 率：AC220V/ 50Hz /3.7kw

Total Power

气     源：≥0.4m³/min

Gas source
